Custom Magnetic 4G Spy GPS Tracker Real-Time GPS Tracking Device for Vehicle Person
Qualcomm 3G /4G Coverage and Global Positioning Quick Respond.
Real-Time Tracking and Geo-fencing
Adjustable Update Frequency
Exclusive Power-saving Mode for Anti-theft
Strong Magnet on the Tracker's Back
Google Map and Mileage Statistics
Historical Moving Route Record
Low Power Alarm
Premium&Large Capacity Battery
Customer User-friendly APP & Professional Web Tracking Platform.
Custom Magnetic 4G LTE GPS Tracker Real-Time GPS Tracking Device for Vehicles Persons
Main feature
Qualcomm 3G /4G Coverage and Global Positioning Quick Respond.
Real-Time Tracking and Geo-fencing
Optional Tracking Mode
Adjustable Update Frequency
Exclusive Power-saving Mode for Anti-theft

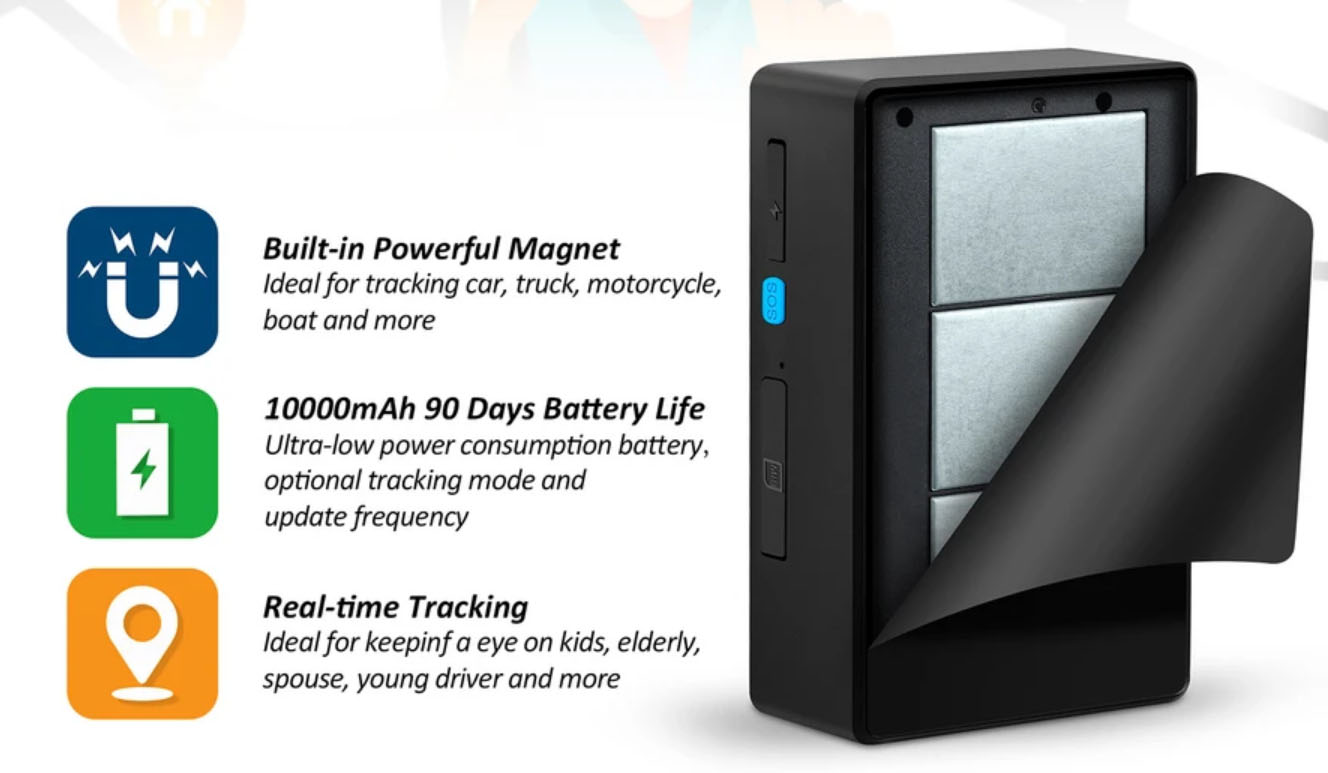

Strong Magnet on the Tracker's Back, Industrial Grade Super Built-in Powerful Magnet
Google Map and Mileage Statistics
Historical Moving Route Record
Global SIM Card
Low Power Alarm
Group Management, Up to 10,000,000+ Units
Custom your need Built-in Difference Battery 10,000mAh, working days up to 90 days.
Premium&Large Capacity Battery
Customer User-friendly APP & Professional Web Tracking Platform.
Specification :
| Chip | Processors | Qualcomm MDM9607 |
| GPS processor | Built-in Beidou Dual-mode Positioning Chip | |
| Charging IC | TP4056/MAXcharg=1.2A/Vds=20V/Vce=-25V/Vgs=12V/Vbe=-6V/SOT-8 | |
| G-sensor | triaxial accelerometer/ LIS3DHTR LGA-16/VLGA-12 | |
| SIM Card | SIM Card PUSH-PUSH FSD-SIM-8PIN | |
| Battery voltage detection | Support | |
| WIFI location | Support (optional) | |
| MIC | Support | |
| GPS antenna | 18*18*4 Ceramic Antenna | |
| GPS radio frequency and antenna | GPS frequency | GPS:1.57542GHZ |
| Number of satellite channels | BDS:1.5611GHZ | |
| Number of satellite channels | 50 | |
| GPS accuracy | 10 m (open sky) | |
| Hot start | 2 seconds (open sky) | |
| Warm start | 15 seconds (open sky) | |
| Cold start | 38 seconds (open sky) | |
| Location mode | GPS/BD+LBS | |
| Positioning sensitivity | dBm 163 | |
| AGPS start | GSM signal normal, less than 25 seconds | |
| CN values | OPEN SKY at least four satellites not less than 40 | |
| Positioning Hardware Requirements | Location error | horizontal <10 m, vertical <10 m |
| Speed accuracy | m/s <0.1 | |
| Time accuracy | <60 s | |
| Base station positioning | About 50-2000 m | |
| Built-in battery | 3400/6800 m /10000Ah( rechargeable, optional) | |
| Operating voltage | V 3.7 | |
| Operating current | <70 mA | |
| Standby current | <5 mA | |
| Working temperature | -20ºC~70ºC | |
| Storage temperature | -40ºC~80ºC | |
| Working humidity | 20~80 RH, non-condensation | |
| Machine Performance and Product Reliability | Waterproof and dustproof grade | From rain, IP X4, liquid from any direction to the shell no damage |
| ESD grade | ESD indicators (4 KV, air 8 KV withstand exposure), national level | |
| Drop requirements | Cement floor ,1 m ,10 times, product without any damage | |
| Impact | The gravitational acceleration <=3 g | |
| Indicator | Blue green red three indicator lights | |

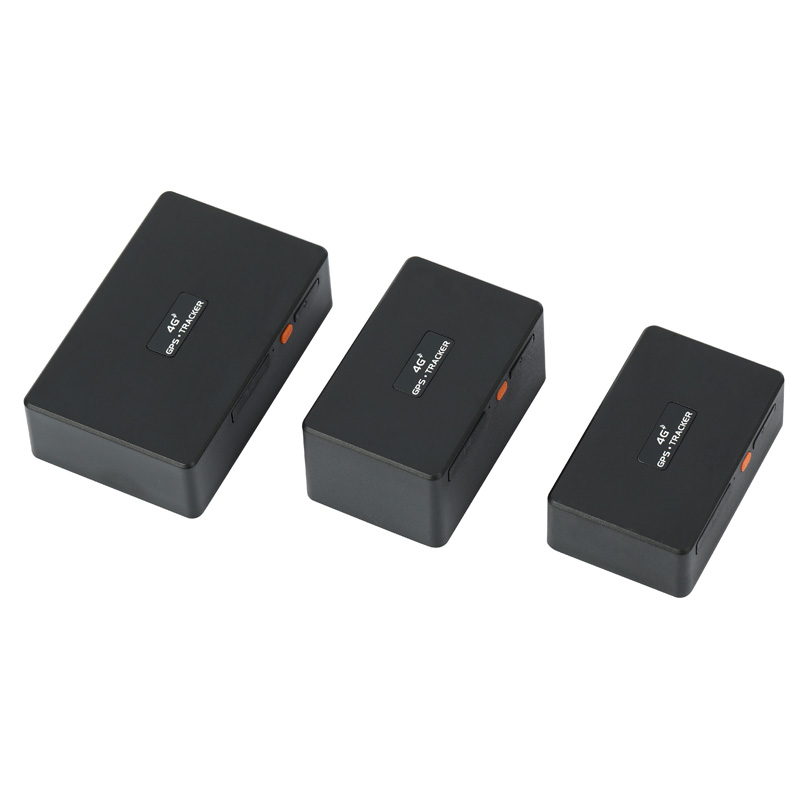

| Mainframe size | Miniature :77 mm*48mm*28mm Medium :77 mm*48mm*39mm Big :96 mm*60mm*30mm |
|
| Mainframe weight | Miniature :130 g g 190 Big :260 g |
|
| Length of charge | Feed to full <=12 hours @ room temperature | |
| Charging mode | Connect the external power automatically | |
| Battery Factory Voltage | V 3.7 | |
| Battery capacity | Polymer lithium battery 3400/6800 /10000mAh( optional) |
Here is most of Band Network as following:
South-East Asia: Taiwan, China/Indonesia/India/Thailand/Lao/Malaysia/Singapore/Korea/Vietnam etc. FDD-LTE B1/B3/B5/B7/B8/B28. Dual-Band UMTS/HSDPA/HSPA B1/B5.
West Asia: Iran/Israel/United Arab Emirates etc. FDD-LTE B1/B3/B7/B8/B20. Dual-Band UMTS/HSDPA/HSPA B1/B8. GSM/GPRS/EDGE 900/1800MHz.
Japan: FDD-LTE B1/B8. Dual-Band UMTS/HSDPA/HSPA B1/B8. Dual-Band GSM/GPRS/EDGE 900/1800MHz. FDD-LTE B1/B3/B8/B18/B19. TDD-LTE B41. Tri-Band UMTS/HSDPA/HSPA B1/B6/B8. Dual-Band GSM/GPRS/EDGE 900/1800MHz.
Germany/France/British/Italy/Belgium/ Netherlands/Spain/Russia/Ukraine/Turkey etc. FDD-LTE B1/B3/B5/B7/B8/B20. Dual-Band UMTS/HSDPA/HSPA B1/B5/B8. GSM/GPRS/EDGE 900/1800MHz.
United States/Canada: Tri-Band FDD-LTE B2/B4/B12. Dual-Band UMTS/HSDPA/HSPA B2/B5. Brazil/Argentina/Chile/Peru/Colombia and others: FDD-LTE B1/B3/B5/B7/B8/B28. Dual-Band UMTS/HSDPA/HSPA B1/B5.
South Africa/Nigeria/Egypt and others: FDD-LTE B1/B3/B7/B8/B20. Dual-Band UMTS/HSDPA/HSPA B1/B8. GSM/GPRS/EDGE 900/1800MHz. Australia/New Zealand FDD-LTE B1/B3/B5/B7/B8/B28. Dual-Band UMTS/HSDPA/HSPA B1/B5.
Custom order on OEM and ODM services
Our experienced R&D team members and engineers offer a great range of GPS tracker OEM and GPS tracker ODM Locator services. We welcome your GPS tracking OEM Locator and GPS tracking OEM projects if our existing range of tracking products does not seem to suffice your requirement.
For our previous and existing clients, we have developed high tech custom products like GPS safety cameras, GPS tracking systems, vehicle alarm, radar detectors, etc. No matter if you need our GPS tracker OEM services to modify the existing standard devices or to design and develop pure ideas from scratch, our expert team delivers the best performing products to meet your requirements.
